Integrated Fiber Endface Inspector – 400x High-Precision Fiber Microscope

Integrated Fiber Endface Inspector – 400x High-Precision Fiber Microscope

Product Overview

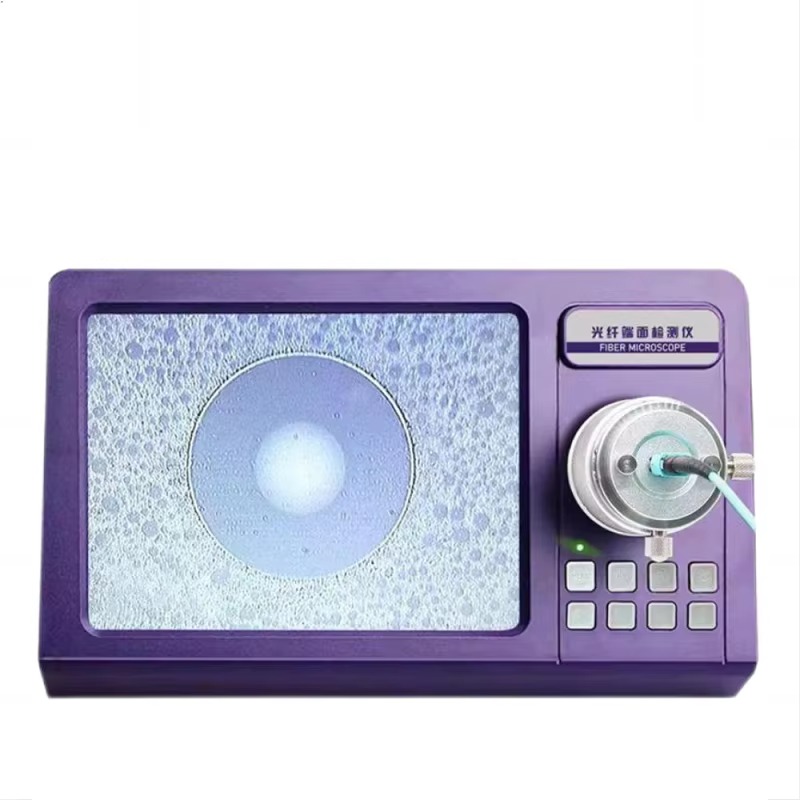

This Integrated Fiber Endface Inspector is a state-of-the-art fiber optic inspection tool designed to combine the microscope and monitor into a single compact device. With its powerful 400x magnification, image storage, and multi-connector adaptability, it delivers sharp imaging and reliable performance for production, lab, or field environments.

Ideal for inspecting fiber ends, ceramic ferrules, and transceiver components, this microscope is essential equipment in optical fiber manufacturing, assembly, and quality control.

Key Features

• 🔍 400x Magnification – Enables detailed endface inspection of single-core optical connectors

• 💡 LED Display Technology – Smooth, flicker-free display reduces visual fatigue compared to CRT monitors

• 🎯 Integrated Design – Microscope and LCD monitor in one compact, user-friendly unit

• 💾 SD Card Image Storage – Capture and save inspection images for reporting and analysis

• 🔄 Adjustable Viewing Angle – Flat or 15° angled viewing for comfortable operation

• ⚡ Rechargeable & AC/DC Operation – Built-in 12V rechargeable lithium battery with power display for convenient field use

• ⚙️ Precision Ceramic Adapters – High-accuracy connector interface for repeatable testing

• 🧩 Supports Multiple Connectors – SC, FC, ST, LC, MU, SMA, E2000, DIN, MPO (single-core)

• ✨ Micro-Evaluation Function – Ideal for inspecting specialty fibers such as panda-type structures

Product Specifications

• Product Name: Fiber Microscope

• Magnification: 400x

• Voltage: 12V

• Size: 288mm × 230mm × 190mm

• Weight: 3 kg

• Color: Purple

• Image Output Port: RCA

• Operating Temperature: +10℃ to +50℃

• Power Supply: AC/DC with rechargeable lithium battery

• Display: 3.5-inch high-resolution LED screen

Connector Compatibility

• ✔ SC

• ✔ FC

• ✔ ST

• ✔ LC

• ✔ MU

• ✔ SMA

• ✔ E2000

• ✔ DIN

• ✔ MPO (single-core only)

Application Areas

• Fiber endface inspection (single-core)

• Ceramic core/ferrule analysis

• Transceiver module testing (TOSA, ROSA, BOSA)

• Multi-core fiber (e.g., 64/128-core) evaluation

• Fiber optic production lines and QA labs

• Field service and maintenance operations

Why Choose This Inspector?

Combining durability, high magnification, and smart features like SD image capture and adjustable viewing, this device stands out as a versatile, high-value inspection tool. Whether you're inspecting standard connectors or advanced components, the Integrated Fiber Microscope ensures clear, consistent, and professional-grade results—every time.
